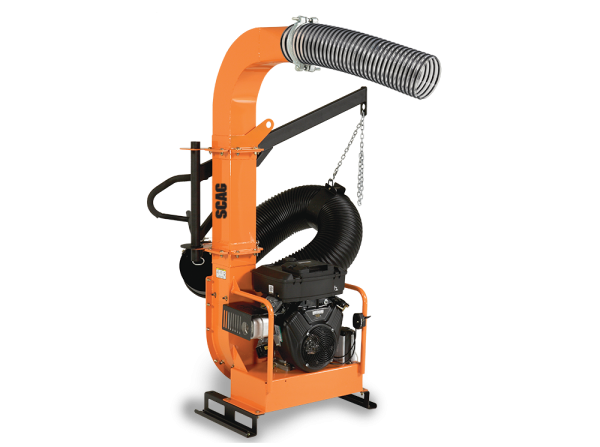

Scag Skid-Mount

Contact us for price

Stock status: Call Store for Availability

Scag® Skid-Mount truck loaders utilize all-welded steel construction along with commercial grade quality throughout the entire line. Learn more.

Call Us Now


Product SpecificationSkid-Mount
Fuel Capacity / Tank1.75 gallons – engine-mounted metal tank
CFM Output3,075
Frame ConstructionAll-steel, welded
Impeller Construction4-blade, 3/8"-thick blades, all-steel, welded
Impeller MountingTapered locking hub
Impeller Diameter / Width20" / 5.25"
Blower Housing ConstructionRemovable back panel for easy impeller and wear plate access
Blower Housing Width6"
Blower Housing Wear PlatesStandard: 1/4"-steel, replaceable
Hose Specifications120" length, 10"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Unit Mounting4" steel skid risers
Discharge TubeClear thermoplastic, 7" diameter
Throttle ControlCommercial-grade, all-steel mechanicals, plastic debris cover
Highway Readyn/a
Trailer Widthn/a
Height74.25" (without skid or hitch mount attached)
Weight437 lb
Warranty2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
