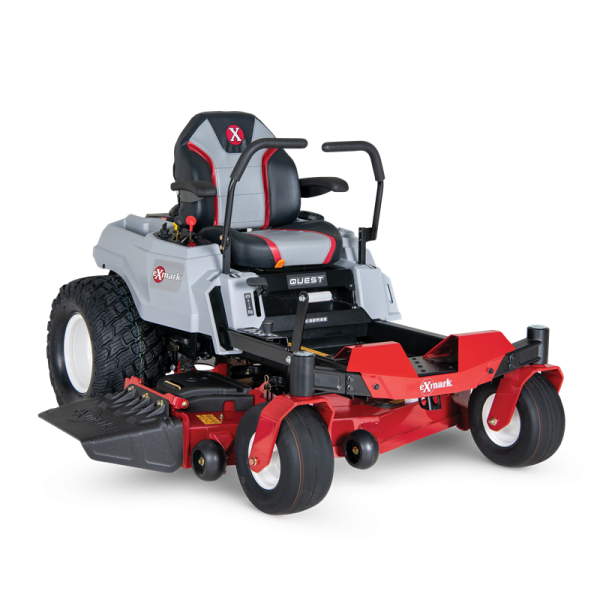

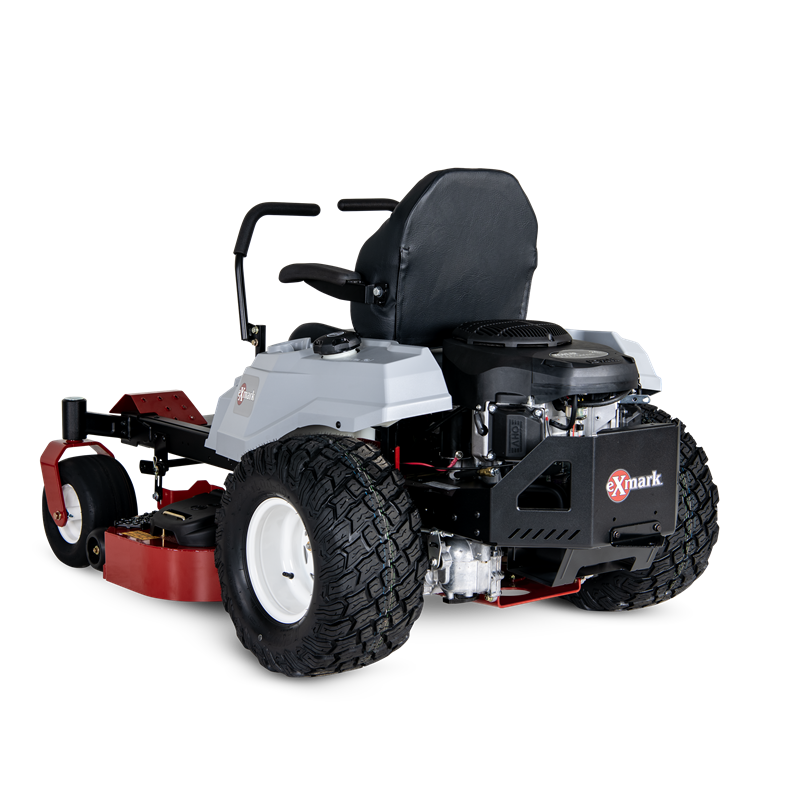

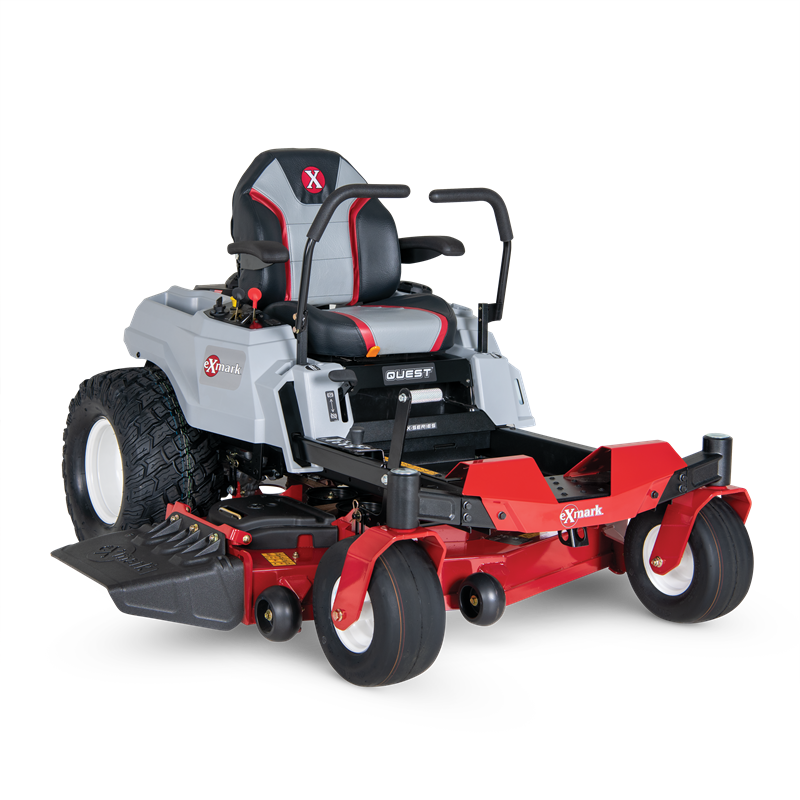

Exmark Quest X-Series with 24 HP* Kohler 7000 Engine and 48″ Series 3 Deck

Contact us for price

Stock status: Call Store for Availability

Looking for a residential zero-turn mower with commercial features and performance? You’ve found it in the new Quest X-Series. The powerful Kohler engine, upgraded 48-inch UltraCut Series 3 cutting deck and heavy-duty Hydro-Gear transmission enable Quest X-Series to cut at up to 8 mph. When combined with the incredible maneuverability of the low center of gravity frame design and the smooth rolling of the large drive and caster tires, Quest X-Series offers an unbeatable combination of performance and value.A new armrest-equipped operator seat provides a smooth ride over bumpy lawns, while a deeper floor pan offers increased legroom for the operator. A standard deck step is included to ease mounting and dismounting the machine, while an integrated hitch and tools-free belt shields ease access for service and maintenance. However, with just two annual grease points and low-maintenance integrated hydro transmissions, servicing the Quest X-Series isn’t something you’ll need to do often. That’s more time for you to do the things you love.If you’re looking for even more power and performance, check out our Radius line of zero-turn riding mowers.

Call Us Now

Specs

UPC

193308225319

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.375" thick caster yoke arms.

Front Caster Tires

13 x 6.5-5 smooth-tread, pneumatic.

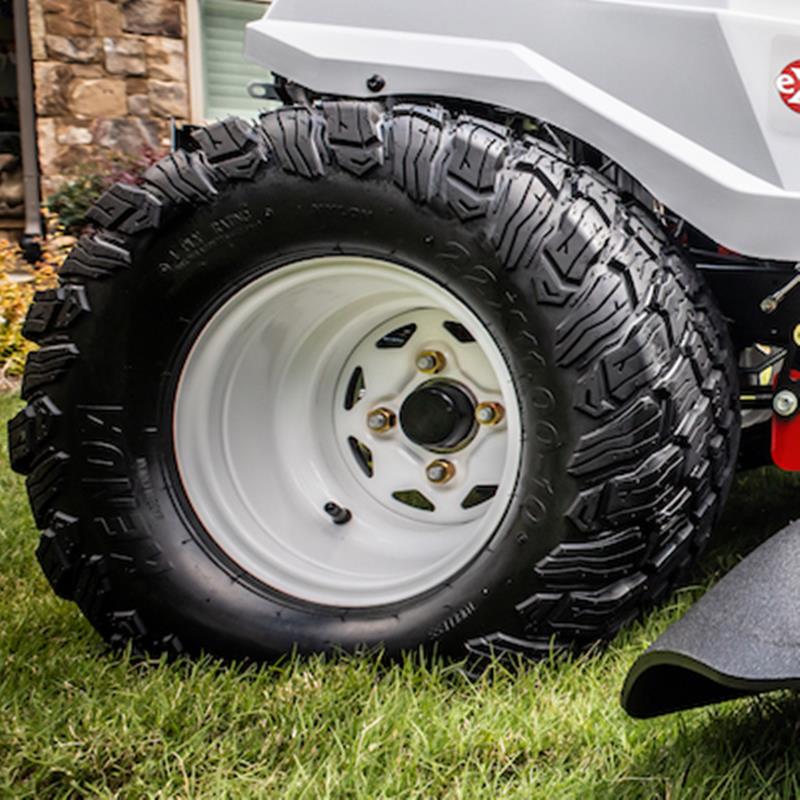

Drive Tires

22 x 11-10 K3012

Parking Brake

Lever-actuated pawl brake.

Tractor Frame

Unibody, riveted 10-guage steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.

Electrical

12 volt battery with 15-amp alternator

Standard Features

Engine hour meter, cup holder and hitch

Seat

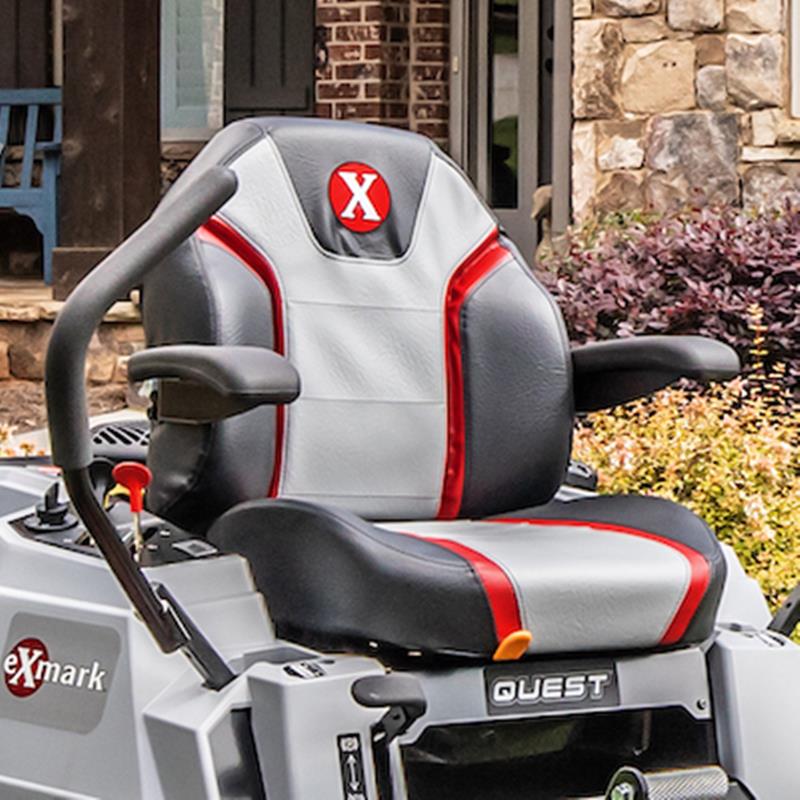

Commercial grade, high back contoured foam padded with arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position.

Engine Brand

Kohler

Engine Model

KT735

Engine Displacement

735

Engine Series

7000 Series

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.

Drive

Hydro-Drive

Engine Spec

3099

Engine Speed

3,600 rpm

Air Filter

Standard Engine Manufacturer's air filter

Fuel Capacity

3-gallon (11.0-L), single fuel tank with single fill locations

Drive Description

Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.

Fuel Type

Gas Carbureted

PTO Engagement

Electromagnetic 105-ft-lb clutch

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock.

ROPS

Optional Rigid ROPS with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

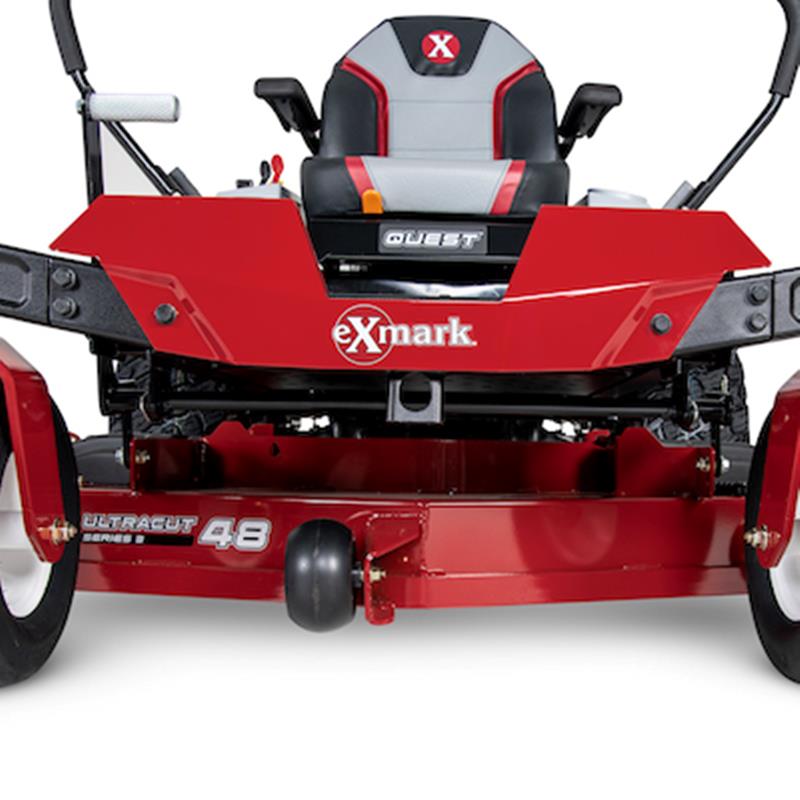

Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

48"

Deck Construction

10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.

Cutting Heights

1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from operator's seat.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 16.25" Length

Width

59.5 in. (151.0 cm)

Height

47.6 in. (121.0 cm)

Length

76.0 in. (193.0 cm)

Curb Weight

680
