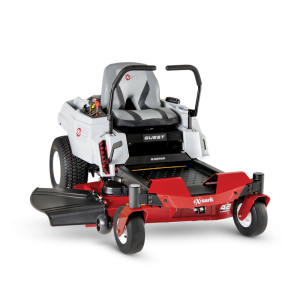

Exmark Quest E-Series with 22 HP* Kohler 7000 Engine and 42″ Series 2 Deck

Contact us for price

Stock status: Call Store for Availability

Need to make quick work mowing your lawn? Quest E-Series zero-turn lawn mowers deliver professional performance and power at the tip of your fingers. The residential zero-turn mower allows homeowners to mow up to 2.8 acres per hour, moving up to 7 mph. Add Exmark’s zero-turn maneuverability, and it adds up to a premium residential mower at an affordable price.Ride in style and comfort on the E-Series mower’s floating decks and ergonomically designed seat system. Every Quest comes with commercial-grade wheels to instill confidence in the riding mower’s ability to deliver precise cutting and professional-grade traction for zero-turn riding. The E-Series residential mower is also available in a 42-inch or 50-inch welded steel mower deck and cutting width. A 22-horsepower Kohler® engine powers the Quest E-Series for maximum efficiency.Also check out the Quest S-Series, our largest residential riding mower with a 54-inch cutting width.

Call Us Now

Specs

UPC

193308212470

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.25" thick caster yoke arms.

Front Caster Tires

11 x 4.0-5 smooth-tread, pneumatic.

Drive Tires

18 x 7.5-8 Turf Tech TL

Parking Brake

Automatic-actuated pawl brake.

Tractor Frame

Unibody, riveted 10-guage steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 17mm (.67") diameter spindle shaft.

Electrical

12 volt battery with 15-amp alternator

Standard Features

Cup holder and hitch

Seat

Units have 16" high-back (no armrests). Hinged mounting with spring suspension. Adjustment fore and aft 3" by loosening 2 bolts and sliding seat.

Optional Features

Hour meter and seat armrests

Transmission Brand

Hydro-Gear

Engine Brand

Kohler

Transmission Speeds

Infinitely Variable

Engine Model

KT725

Engine Displacement

725

Transmission

Hydrostatic

Engine Series

7000 Series

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–7.0 mph (11.3 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.

Drive

Hydro-Drive

Engine Spec

3097

Engine Speed

3,300 rpm

Air Filter

Standard Engine Manufacturer's air filter

Fuel Capacity

3-gallon (11.0-L), single fuel tank with single fill locations

Drive Description

Two Hydro-Gear ZT-2100 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir

Fuel Type

Gas Carbureted

PTO Engagement

Electromagnetic 80-ft-lb clutch

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; hand lever deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock.

ROPS

Optional Rigid ROPS with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Series 2 fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch.

Width / Cutting Deck

42"

Deck Construction

10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper. 3 point suspension.

Cutting Heights

1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from operator's seat.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

2 Blades at 21.6" Length

Width

53.8 in. (137.0 cm)

Height

45.6 in. (113.0 cm)

Length

75.0 in. (191.0 cm)

Curb Weight

415
