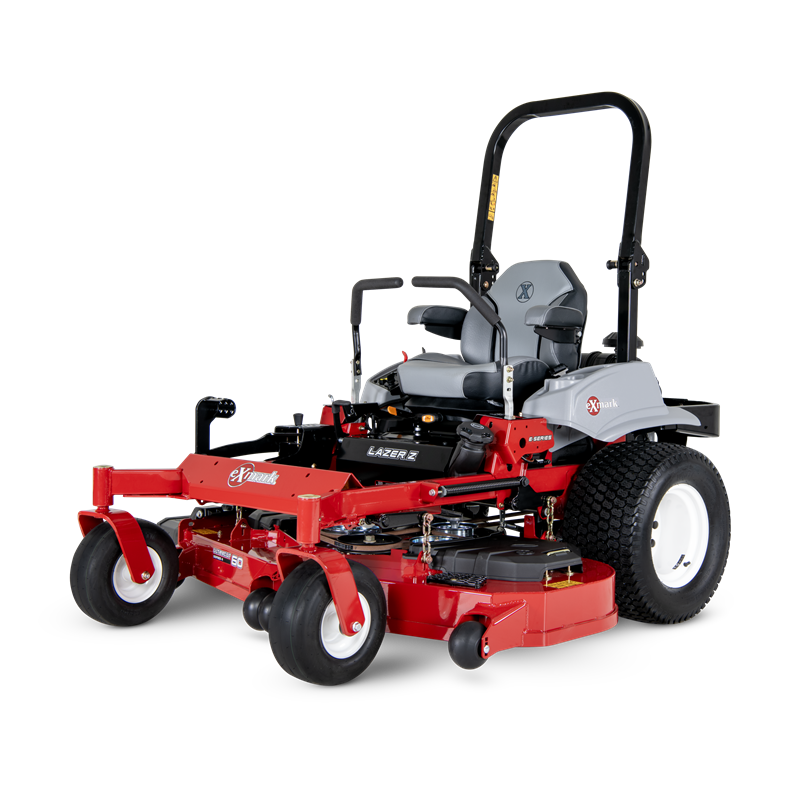

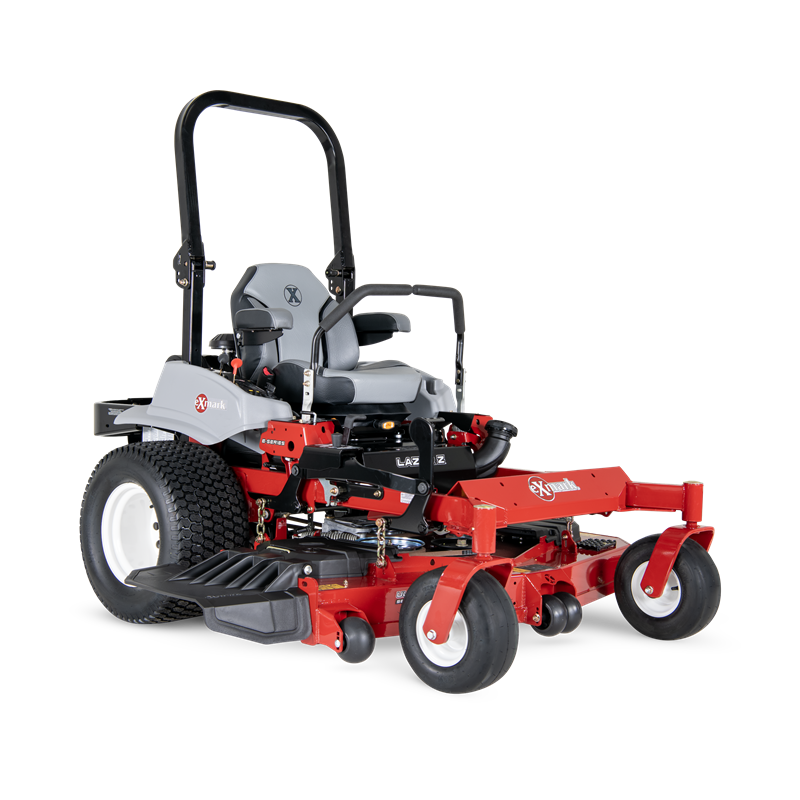

Exmark Lazer Z E-Series with 23.5HP* Kawasaki FX730V Engine and 48″ UltraCut Series 4 (2-Blade) Deck

Contact us for price

Stock status: Call Store for Availability

As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.Like our entire lineup of zero-turn mowers, the Lazer Z E-Series delivers unmatched durability and long-term value. Be sure to check out the rest of the Lazer Z family, including the Lazer Z S-Series zero-turn mower.

Call Us Now

Specs

UPC

193308242187

Width / Cutting Deck

48"

Drive

Hydro-Drive

Starter

Electric

Steering Control

Hydraulically dampened twin levers, adjustable both fore and aft with a 2-position height adjustment.

Caster Forks

0.50" thick caster yoke arms.

Front Caster Tires

13 x 6.5-6, smooth tread, pneumatic, with sealed ball bearings.

Drive Tires

24 x 9.5-12, 4-ply Super Turf TL

Safety Package

Operator Presence Controls (OPC) and drive system interlock with safety interlock system indicators.

Parking Brake

Lever-actuated internal wet disc brake.

Tractor Frame

Unibody, welded, heavy-duty 1.5" x 3" tubular steel.

Blade Spindles

No-maintenance, sealed, and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (0.98") diameter spindle shaft and splined blade driver.

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter and cup holder.

Seat

Suspension seat, foam flip-up armrests, integral safety switch with adjustment fore and aft from the operator's position.

Engine Brand

Kawasaki®

Transmission Speeds

Infinitely Variable

Engine Model

FX730V

Engine Displacement

726cc

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–11.0 mph forward, 0–6.0 mph reverse

Engine Spec

FX730V-FS26-R

Engine Speed

3,700 RPM

Air Filter

Heavy-duty canister air filtration system.

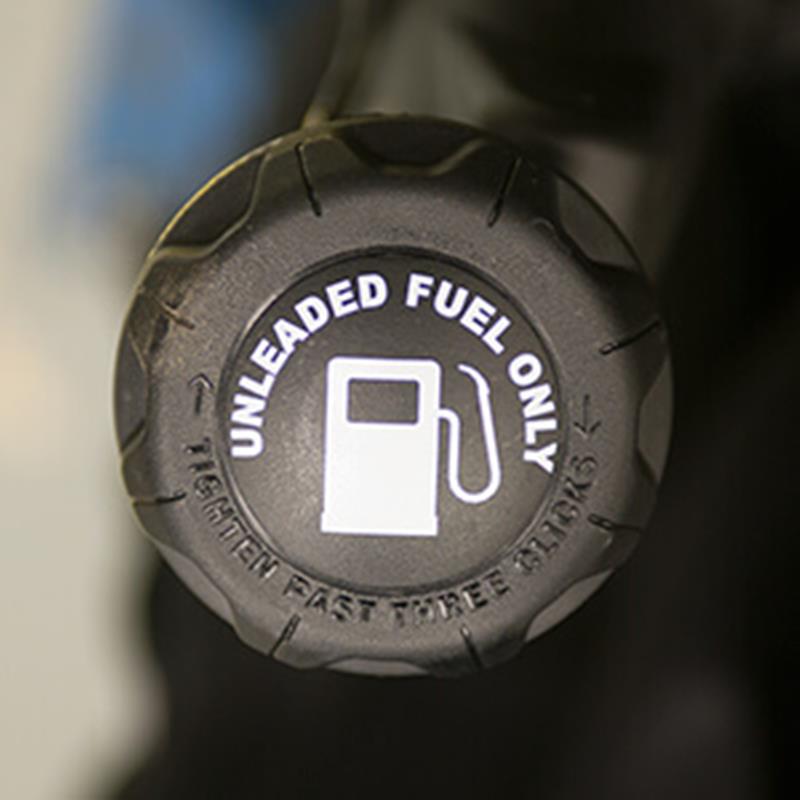

Fuel Capacity

9.5-gallon single fuel tank with single fill location

Drive Description

Dual Hydro-Gear ZT-4400, hydrostatic transmissions with charge pumps, relief valves and independent, replaceable filters.

Fuel Type

Gas Carbureted

PTO Engagement

MagStop Electromagnetic 175 ft-lb clutch with spot brake.

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Mechanical float

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Deck Construction

A 10-gauge high-strength alloy top that is formed and continuously seam-welded, with a 7-gauge side skirt and a 7-gauge reinforcement plate welded to spindle mounting locations for improved strength.

Cutting Heights

1.5" to 5.5" in 0.25" increments

Blade Tip Speed

Approximately 18,500 fpm.

Blades

2 blades at 24.50" length

Width

61.2"

Height

70.1"

Curb Weight

1017

Length

87.8"
