Specs
UPC
193308240756
Starter
Recoil
Front Caster Tires
9" x 2.4", semi-pneumatic
Drive Tires
9.0" x 2.4", semi-pneumatic.
Safety Package
Zone start
Engine Brand
Honda
Transmission Brand
General Transmissions
Transmission Speeds
Infinitely Variable
Engine Model
GXV160UH2
Engine Displacement
163
Engine Series
GXV
Fuel System
Carbureted
Speed
0.0 mph to 4.2 mph (6.8 kmph) forward.
Transmission
Gear
Drive
Belt-Drive
Engine Spec
A1TT
Engine Speed
3,300 rpm
Air Filter
Dual element air cleaner
Fuel Capacity
1-gallon
Drive Description
Self-propelled; rear-wheel gear-driven.
Fuel Type
Gas Carbureted
Fuel Indicator
None
Carb Compliant
No
Deck Style
Fixed Deck
Deck Style Description
Fixed deck, Rear-discharge bagger and mulch plug standard.
Width / Cutting Deck
21"

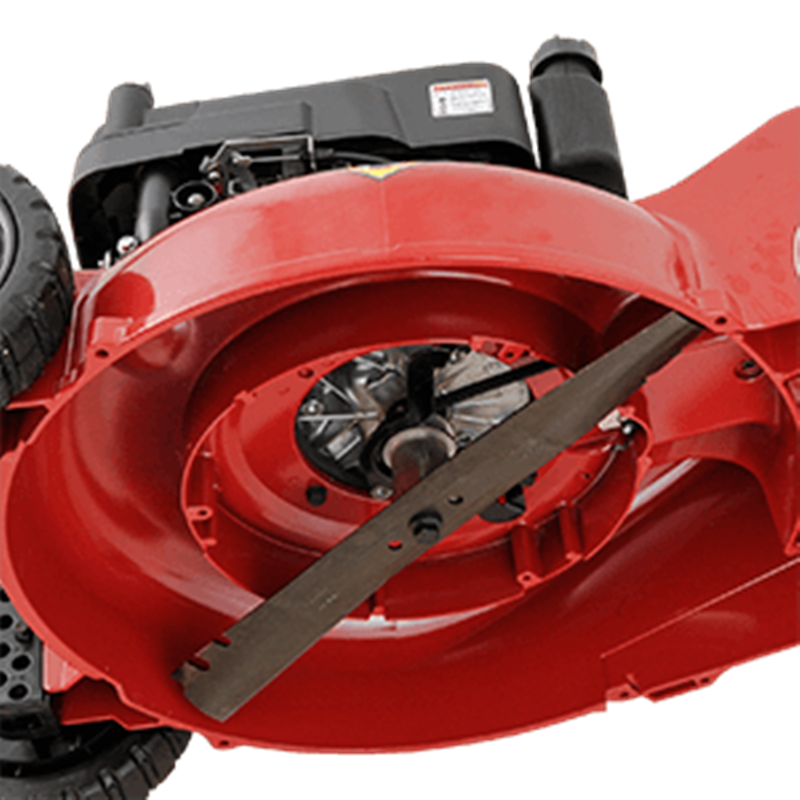

Deck Construction
5" deep, 1/4"-thick die-cast aluminum.
Cutting Heights
1.0" to 4.5" in 0.5" increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
1 Blade at 20.5" Length

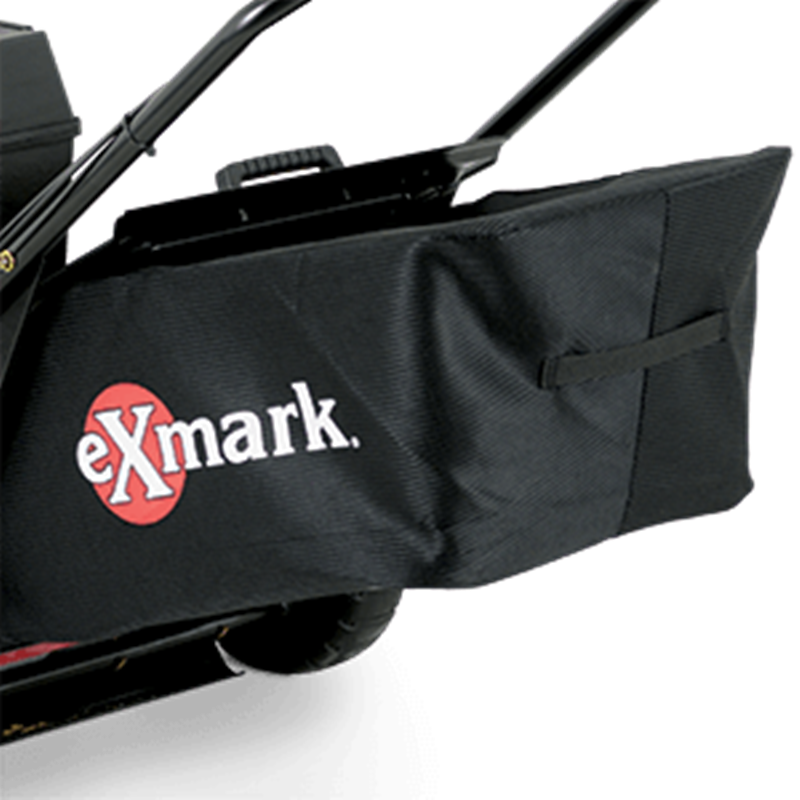

Bag Capacity
2.5 bushels (20 gallons)
Width
22"
Height
38"
Curb Weight
112
Length
63"
